01 / SCALE
Give your ideas room.
533 × 300 × 550mm build volume
Build larger parts and arrange multiple components across one generous exposure area.
LUMEN SERIES / LARGE-FORMAT DLP
Lumen Storm XL
More room. More possibility.
Explore the Lumen series. Discuss your application, configuration and delivery with the team.
Build volume533 × 300 × 550mm
Optical engine4KDLP
Pixel size139µm
Print speedUp to 30mm/h*
Loading enclosure and interior assembly…
Scroll to explore · drag to inspect
02 / LIGHT
Every layer. In focus.
4KDLP projection
3840 × 2160 projection with 139 µm pixels. Bring your full-size designs into the same workflow as smaller detailed components.
03 / MOTION
Precision beneath the surface.
0.001mm specified repeatability
A ball screw, dual linear guides and closed-loop motor guide the build platform through each layer.
04 / PRODUCTIVITY
Keep good work moving.
Automaticresin feeding and recovery
Spend less time managing resin between jobs. Maximum print speed is 30 mm/h, depending on material and settings.
05 / EVERYDAY OPERATION
Designed around the operator.
7-inchrotating touchscreen
Chamber heating, air filtration and an adjustable display support day-to-day production.
06 / APPLICATIONS
From screen to something real.
Full-sizeideas, made tangible
Explore prototypes, tooling, detailed shells and application-specific resin workflows with the team.
FROM POSSIBILITY TO PRINT
Structures with purpose.

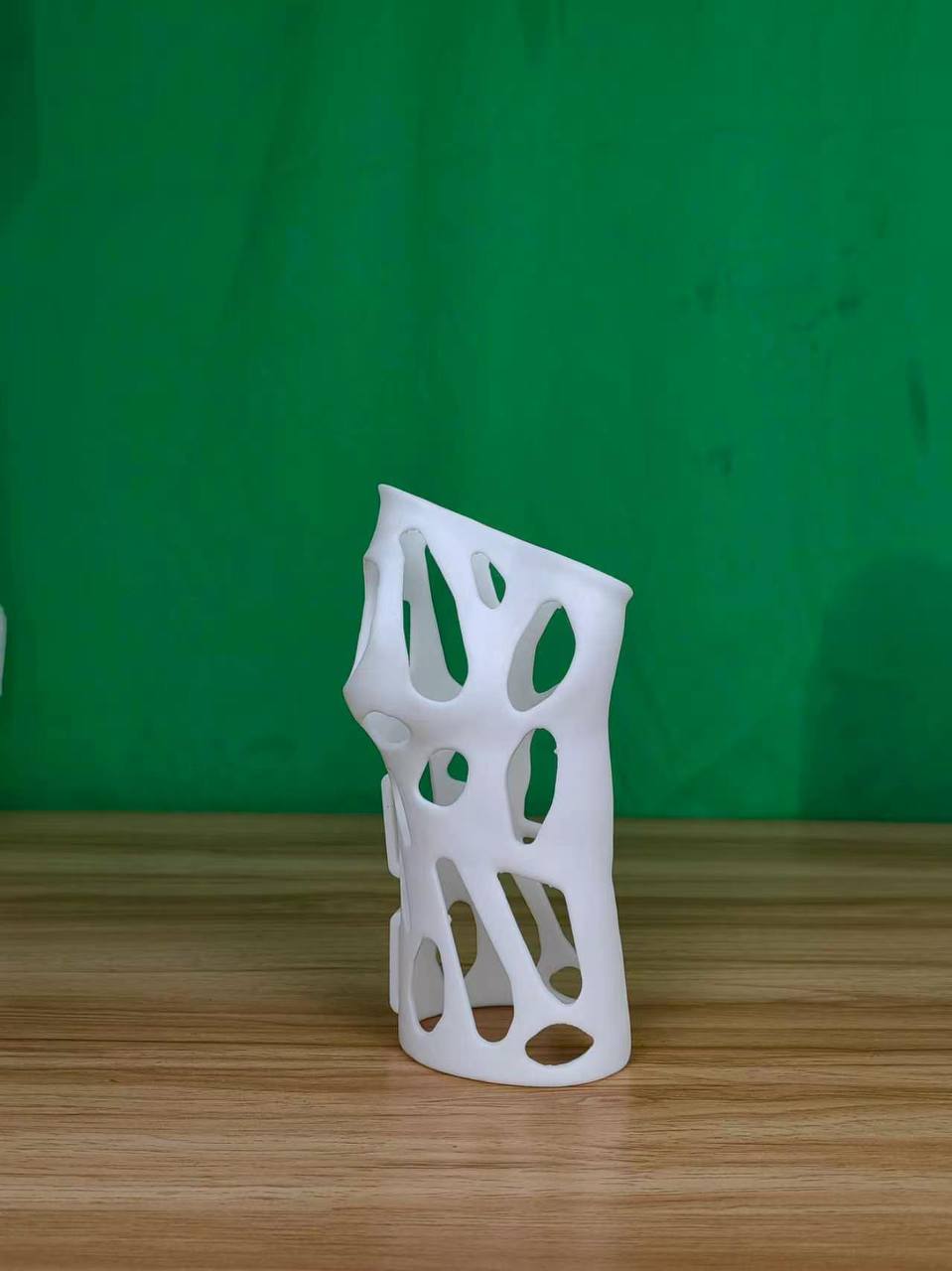

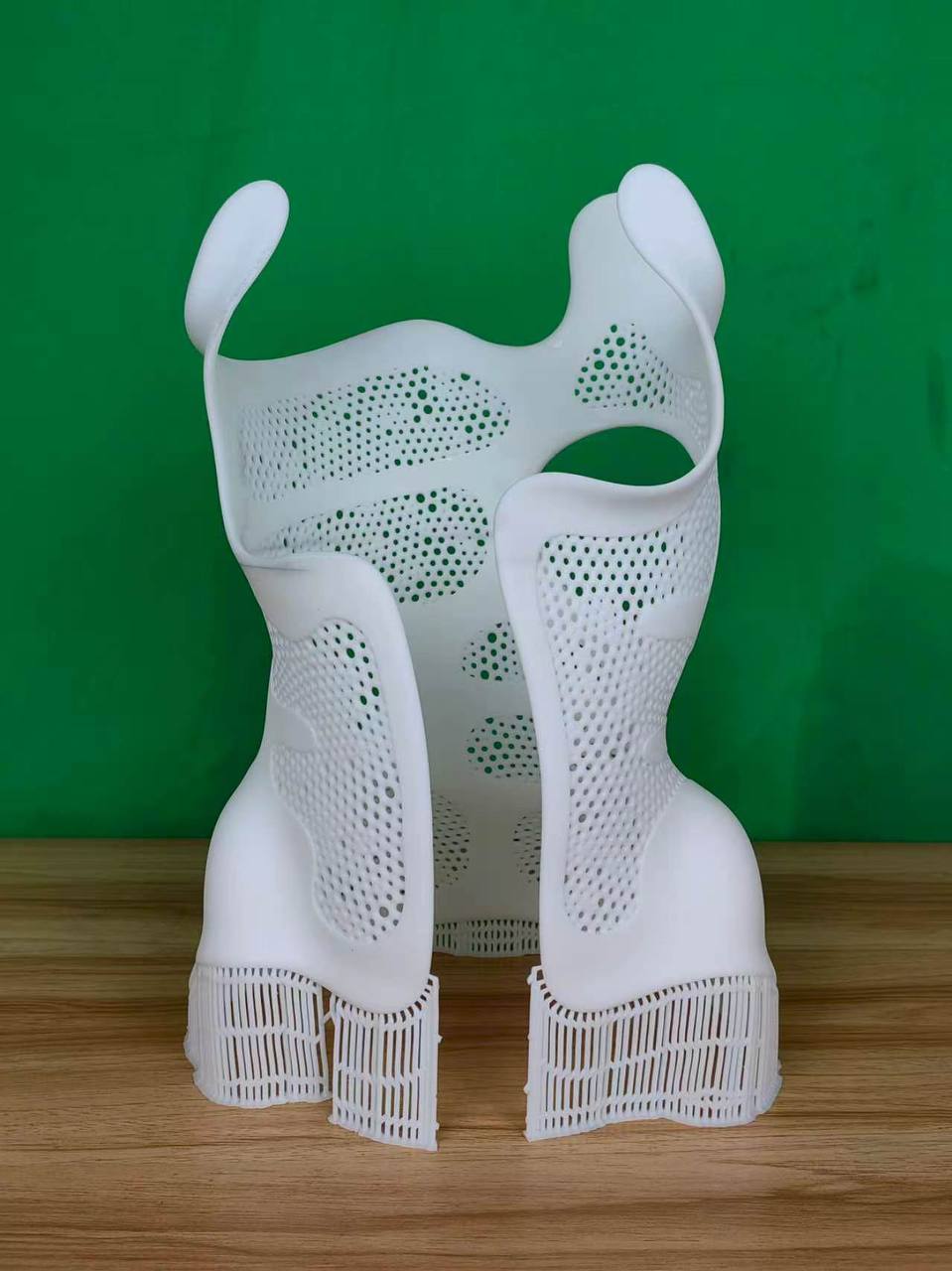

Explore full-size prototypes, detailed shells and intricate resin structures. Choose the material and workflow around your application.
THE DETAILS
Know what makes it work.
- Technology
- DLP planar projection
- Build volume
- 533 × 300 × 550 mm
- Projection resolution
- 3840 × 2160 pixels
- Pixel size
- 139 µm
- Specified printing accuracy
- 0.25 mm
- Resin handling
- Automatic feeding and recovery
- Maximum print speed
- 30 mm/h*
- Exposure wavelength
- 405 nm
- Chamber heating
- 160 W heating system
- Light intensity
- 2.7 mW/cm²
- Z-axis drive
- Ball screw with dual linear guides; closed-loop motor
- Specified Z-axis repeatability
- 0.001 mm
- Touchscreen
- 7-inch; 0–90° rotation
- Air handling
- Built-in purification and filtration
- Power input
- 100–240 V, 50–60 Hz
- Rated power
- 600 W
- Machine dimensions
- 780 × 560 × 1750 mm
- Net weight
- 158 kg
*Maximum speed depends on resin, layer thickness, part geometry and exposure settings. Final machine configuration, resin compatibility and available options are confirmed in your quotation.
About the 3D visualisation
The enclosure uses supplied CAD. The internal mechanism is an illustrative assembly. Engineering details and the final configuration are confirmed with the team.
