01 / SCALE
Your ideas. At full scale.
1 m³1000 × 1000 × 1000 mm
Bring large prototypes, patterns and tooling into one generous working envelope.
SWIFT SERIES / LARGE-FORMAT PELLET PRINTING
Swift Storm 1000
Think big. Make bigger.
Explore the Swift series. Discuss your application, configuration and delivery with the team.
Build envelope1m³
Stated depositionUp to 700mm³/s*
Head temperature450°C maximum
Heated platform120°C maximum
- 3-zone head heating
- Automatic lubrication
- Cooling chiller
Preparing the complete Swift Storm assembly…
Scroll to explore · drag to inspect
02 / ACCESS
Open up the possibilities.
Insidethe complete assembly
Follow the front door into the machine. See how the enclosure, working area and service systems fit together.
03 / ARCHITECTURE
Cooling that keeps pace.
Chillersupported liquid cooling
A dedicated chiller supports liquid cooling for the extrusion system. The enclosure separates to reveal how the head, motion and support equipment work together.
04 / PELLET EXTRUSION
Three zones. One extrusion path.
3 zones450°C maximum head temperature
Three-zone head heating manages heat along the extrusion path, with chiller-supported liquid cooling for thermal management. Move closer to explore the uncovered mechanism.

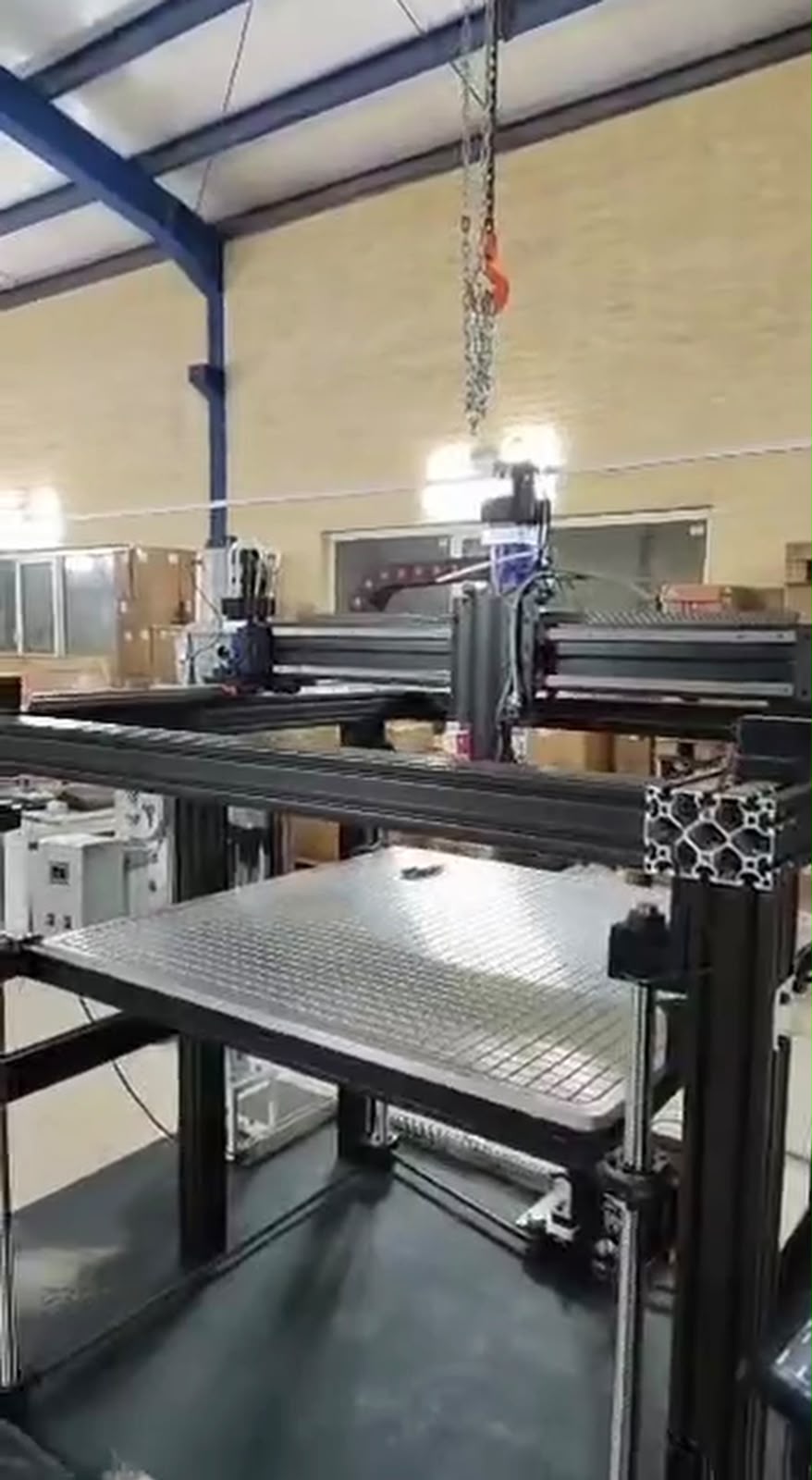

05 / BUILD PLATFORM
A firm foundation.
120°Cmaximum bed temperature
A broad heated vacuum platform supports part hold and surface temperature control throughout the build.

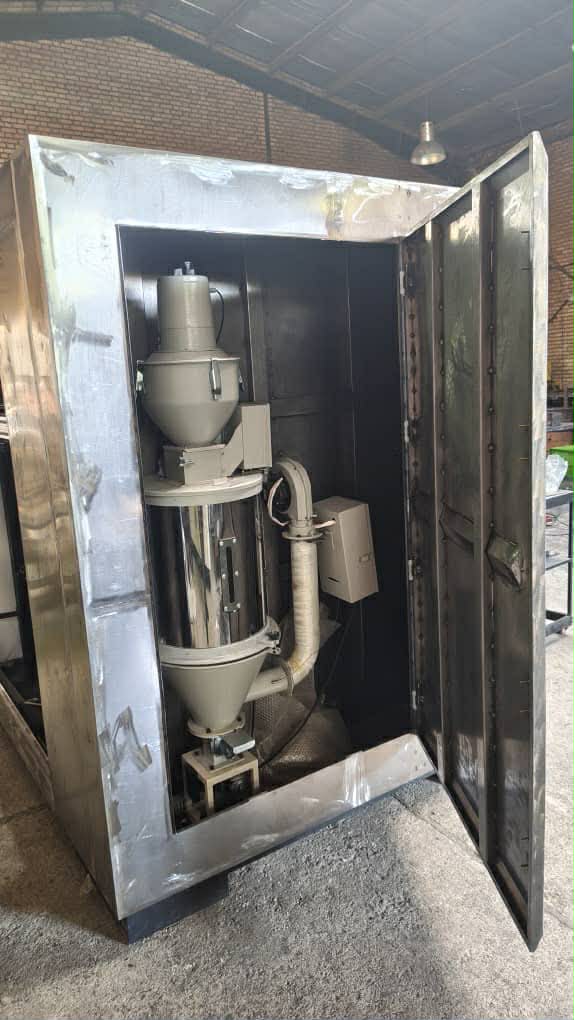

06 / MATERIAL PREPARATION
A good print starts earlier.
90°Cmaximum material drying temperature
Automatic drying prepares the feedstock before it reaches the extrusion path. Match the material and process to your application.
07 / MOTION
Keep motion well cared for.
Automaticlubrication for the motion system
Automatic lubrication supports the servo-driven rack-and-pinion motion system. Explore the gantry and carriage architecture that carries the head across large-format work.
08 / PRODUCTIVITY
Turn ambition into output.
700mm³/s stated maximum deposition*
Make room for larger tooling, fixtures and prototypes. The team will confirm material, nozzle and process settings for your application.
A CONNECTED PROCESS
Three temperatures.
One considered workflow.
Prepare the feedstock. Manage the melt. Support the build.
01 / PREPARE
90°C
Ready the material.
Automatic feedstock drying, up to 90°C.
02 / EXTRUDE
450°C
Bring the heat.
Three-zone head heating up to 450°C, with chiller-supported liquid cooling.
03 / SUPPORT
120°C
Control the foundation.
A heated vacuum platform rated to 120°C.
Maximum ratings are shown. Operating temperatures depend on the selected material and process.
BEYOND THE RENDER
Real hardware.
Every bit as considered.

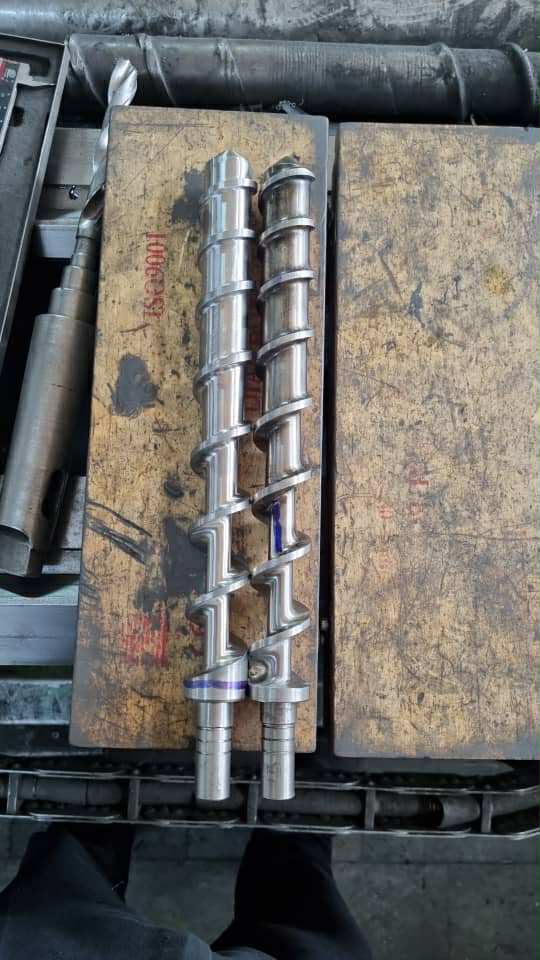

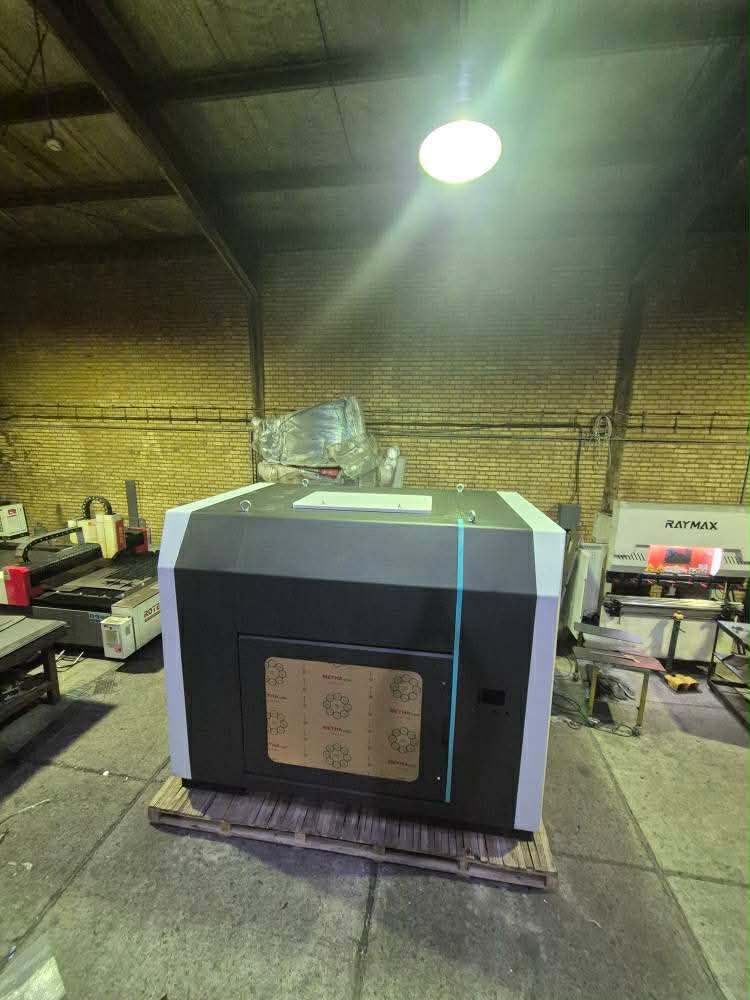

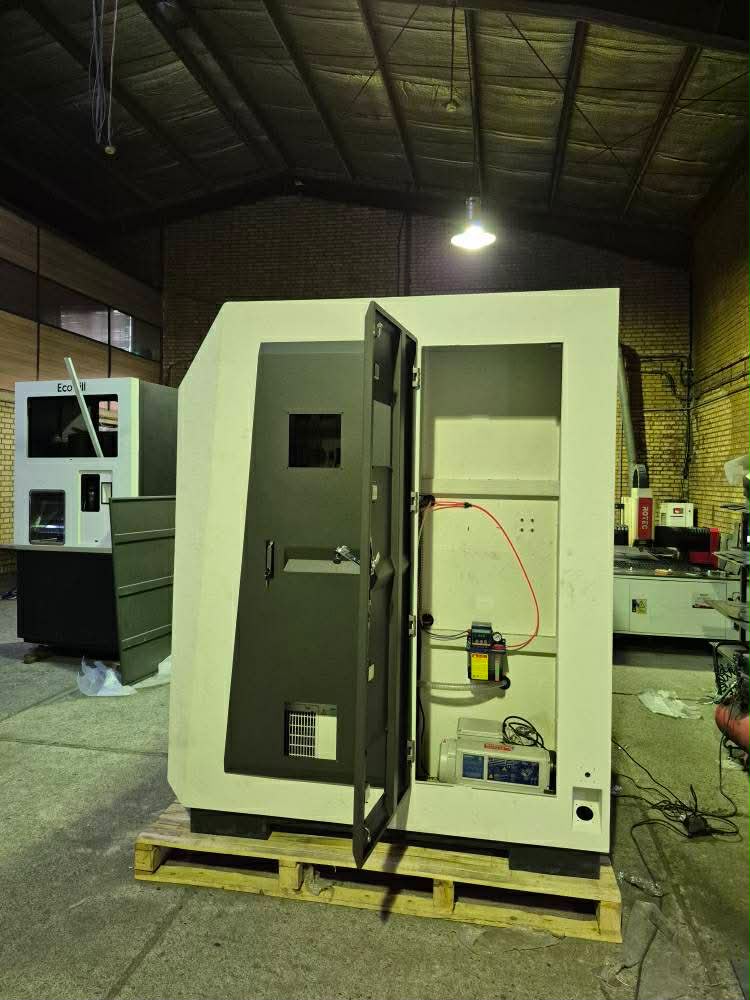

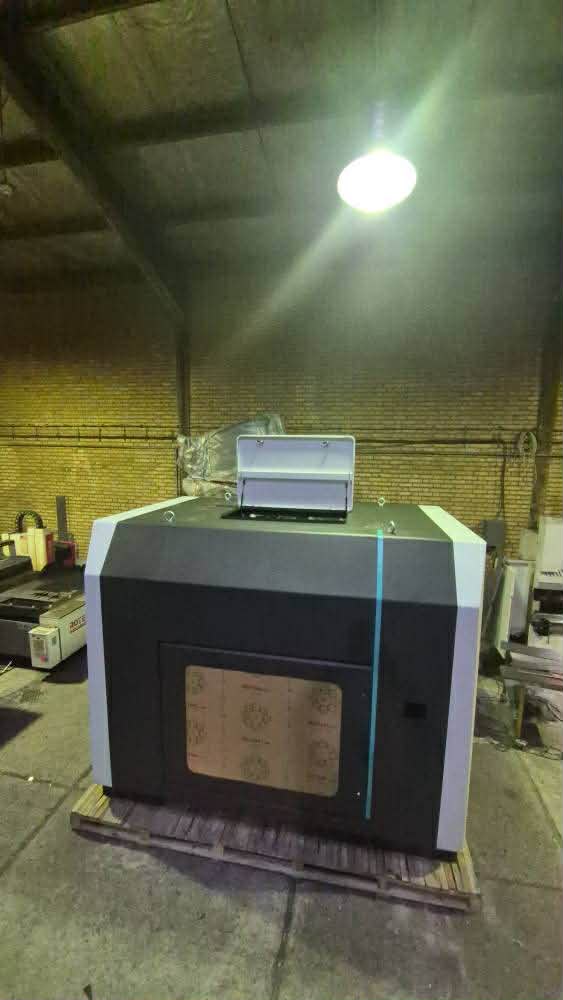

Explore the supplied factory photographs of the Swift Storm platform and its equipment.
THE DETAILS
Capability, in detail.
- Process
- FGF / pellet extrusion
- Build envelope
- 1000 × 1000 × 1000 mm
- Stated maximum deposition rate
- 700 mm³/s*
- Maximum head temperature
- 450°C
- Maximum bed temperature
- 120°C
- Material drying
- Up to 90°C
- Motion transmission
- Rack and pinion
- Motion drive
- Servo
- Extrusion thermal management
- Chiller-supported liquid cooling
- Build platform
- Heated vacuum bed
- Head heating
- 3 zones
- Lubrication
- Automatic
*700 mm³/s is the catalogue's stated maximum volumetric deposition rate, not a linear travel speed. Achievable output depends on material, nozzle, temperature and geometry. Your quotation confirms configuration, material compatibility, lead time and delivery.
About the 3D visualisation
The viewer retains the complete supplied Swift CAD assembly. Group separation, camera moves, display finishes and lighting are presentation effects. The vacuum-bed surface is restored from the earlier presentation as a separate visual layer. The displayed assembly is not a manufacturing drawing or a verified simulation of machine travel.
